Technaxx Balcony power plant bracket Pro 800W-1000W TX-309
Technaxx Balcony power plant bracket Pro 800W-1000W TX-309

UVP: 349,00 EUR

EAN: 4260358126869

SKU: 5226

Balcony power plant bracket 800W-1000W TX-309

Features:

  • Easy assembly
  • Statically tested bracket

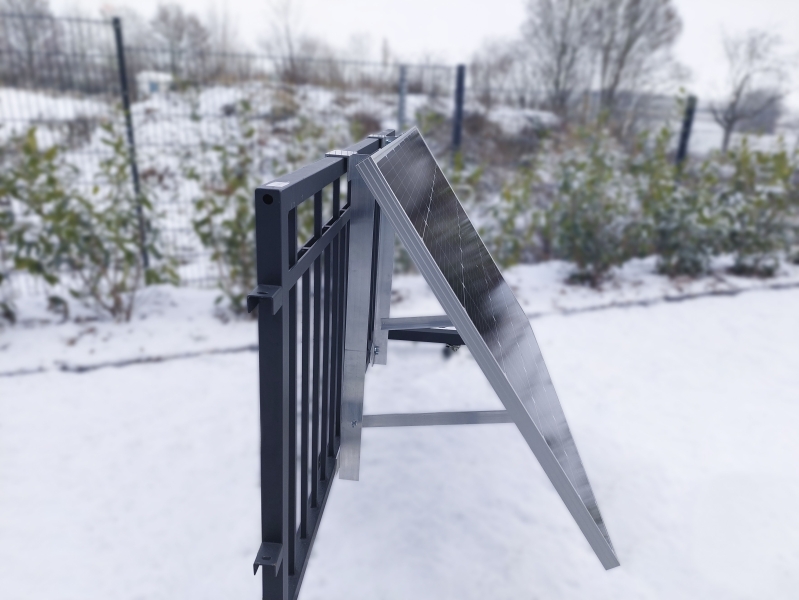

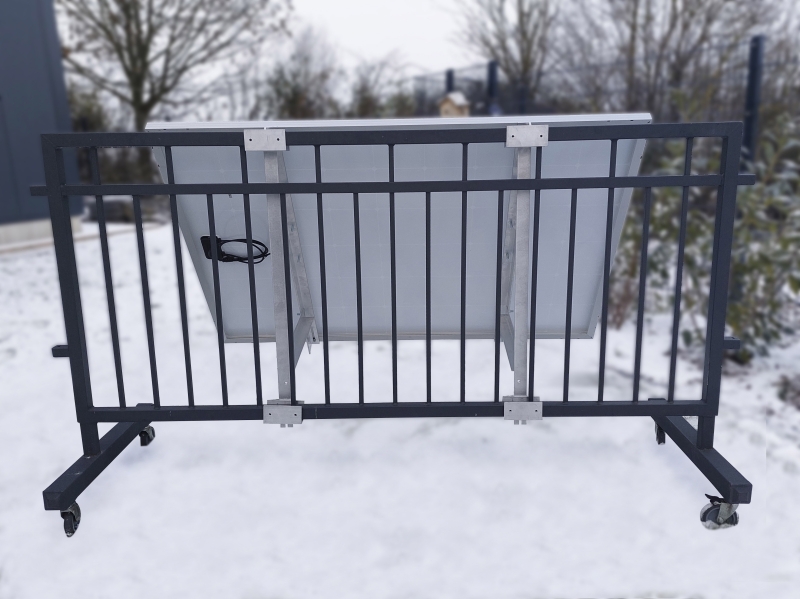

  • 3 mounting options (balcony (round+square), free-standing, wall mounting)
  • 3 adjustable mounting angle (30°, 35°, 40°)
  • High quality 6mm aluminum profile

    Technical specifications:
  • Max. snow load: 158kg/m² (snow zone 2, Germany)
  • Max. wind force: 25m/s (wind zone 2; Germany)
  • Material: Aluminum (EN AW-6060)

    Dimensions:
  • Aluminium flat profile (long) (LxWxH) 120 x 6 x 0.6cm
  • Alu-profile (long) (LxWxH): 105 x 6 x 4cm (6mm)
  • Alu-profile (short) (LxWxH): 95 x 6 x 4cm (6mm)
  • Alu-profile (angle) (LxWxH): 51 x 4 x 4cm (4mm)
  • Alu-U-profile (LxWxH): 12 x 6 x 6cm (5mm)

    System requirements:
  • TX-220, TX-241, TX-265, TX-271, TX-274 or module Hole spacing: 91.5-119cm

    Package contents:
  • 4x aluminium flat (long)
  • 4x Alu-profile (long),
  • 4x Alu-profile (short),
  • 4x Alu-profile (angle),
  • 8x Alu-U-profile,
  • 8x Spacer washer (60x120x3mm),
  • 56x Hex nut M8,
  • 8x Rubber strip (2mm 120x140mm),
  • 8x hexagon screw M8 x20,
  • 16x star screw M8

    Weight and Dimensions:
  • Weight device: 20.4kg
  • Dimensions device: 95 x 6 x 51cm
