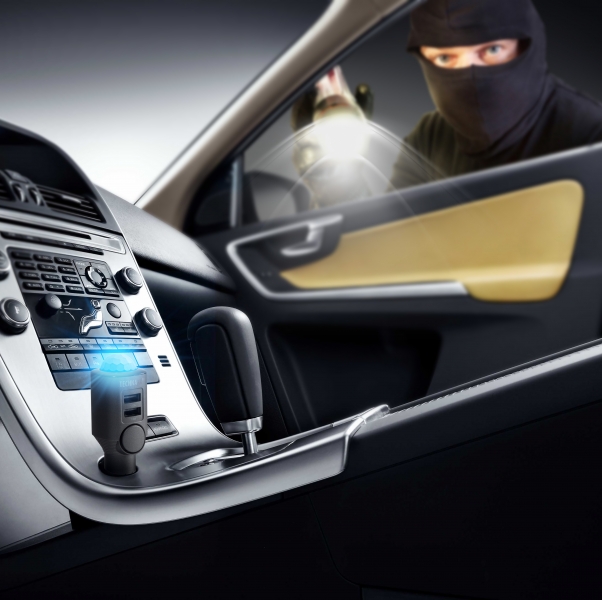

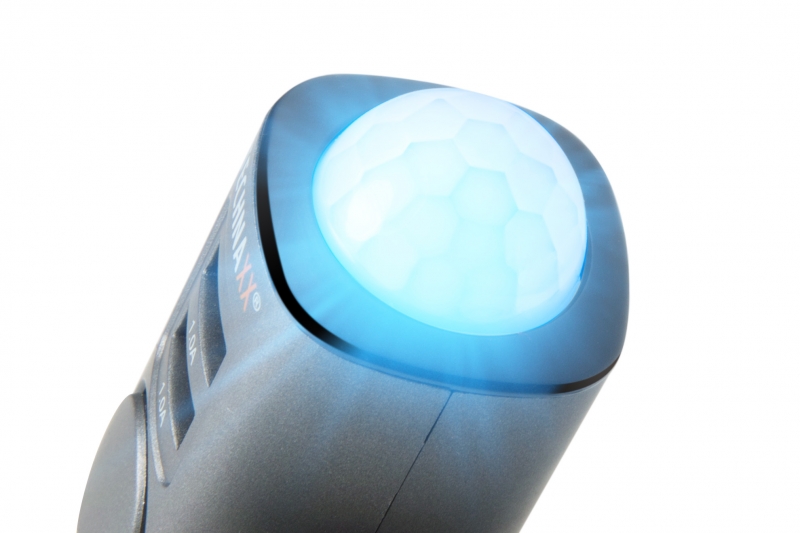

Monitoring of vehicle interiors with PIR motion detection sensor

Product Highlights:

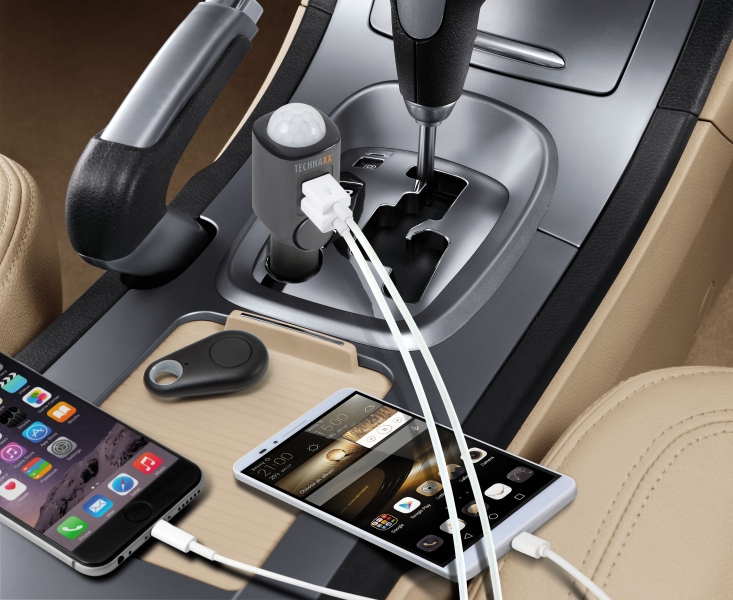

• 12–24V rechargeable Universal Mobile & Auto Alarm for the cigarette lighter socket
• Automatic alarm triggering at motion detection
• Built-in 450mAh battery for ~6 days standby time
• Built-in alarm siren with 110dB

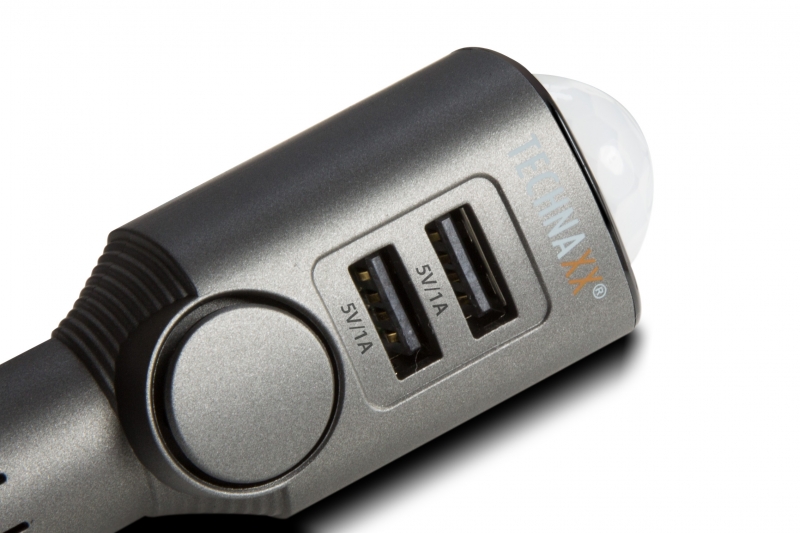

• 2 USB charging ports with 5V/1A output power each
• Remote control to activate/deactivate the alarm
• LED status indicator

  Technical Specifications:
• Detecting range: car interior, 120° cone angle
• Distance IR remote control ~8m (open areas)
• Alarm time 2 minutes maximum
• Built-in rechargeable 450mAh lithium polymer battery 4.2V
• Charging time ~3–4 hours / Standby ~6 days
• Input voltage DC 12–24V (cigarette lighter socket)
• Charging current 65mA / Operating current 26mA
• Over current protection 2.8A & Short circuit protection
• Transmission frequency 433,92 MHz / type: ASK
• Maximum radiated transmission power 20mW

  Package Contents:
• Universal Mobile & Auto Alarm TX-100
• Remote control (with button cell battery CR2032 3V)
• User Manual

  Dimensions and Weight:
• Weight/Dimensions car alarm: 44g / (L) 3.2 x (W) 3.2 x (H) 11.5cm
• Weight/Dimensions remote control: 10g / (L) 5.3 x (W) 3.1 x (H) 1.0cm
