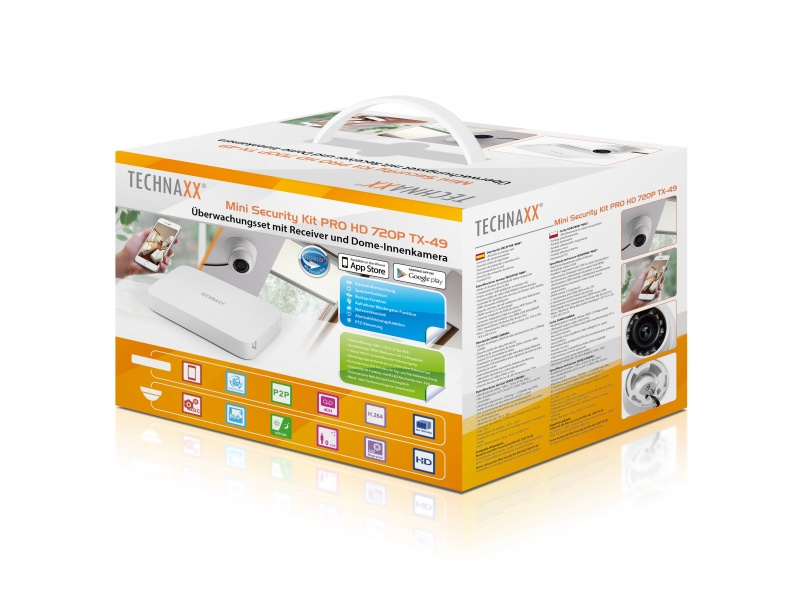

Mini Security Kit PRO HD 720P TX-49

• Receiver for Mini Security Kit PRO HD 720P TX-49
• Dome Camera for Mini Security Kit PRO HD 720P TX-49

  Features Receiver “Mini”:
• Real-time monitor
• Storage function
• Backup function
• Record playback function
• Network operation
• Alarm activation function
• Motion Detection
• PTZ control

  Technical specifications Receiver “Mini”:
• Up to 4-cameras video input
• H.264 video compression
• All channel 720P realtime recording
• Support VGA/HDMI video output at the same time
• 4-channel synchronous real-time playback, GRID interface, smart search
• Supports multi-brand network cameras from other manufacturers
• ONVIF version 2.3 conformance
• 1 built-in SATA port supporting HDD 2.5" up to 2TB
• 2 built-in ports USB2.0 and higher for USB mouse, system update & backup (system configuration, video files)
• Multiple network monitoring: WEB Interface (Browser), My Secure Pro PC Client, My Secure Pro
• Weight / Dimensions: 360g (without HDD) / (L) 19.3 x (W) 13.8 x (H) 3.0cm

  Features Dome Camera:
• High-performance CMOS image sensor with 1.0 Mega pixel
• Supports HDCVI HD video output
• Transmission distance up to 250m via 75-3 coaxial cable without data loss
• High speed, long distance real-time transmission
• Automatic ICR switch to realize surveillance both in the daytime and at night
• Automatically: exposure, white balance, electronic shutter, gain function
• Restore clear and vivid video
• Supports IR function with IR LED distance max. 10m

  Technical specifications Dome Camera:
• Video resolution: 1280 × 720 @ 25 fps (PAL)
• Min. illumination: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR switched on
• Electronic shutter: 1/50 sec. ~ 1/100000 sec. (PAL)
• 1-channel HDCVI high definition video output
• BLC (BackLight Control): automatically
• IR light only is active for video recordings in night mode
• Power: DC 12V ± 10%
• Power consumption: 2.2W max. (Input 12V/0,18A) IR max. 10m
• Working temperature: – 30°C ~ 60°C
• Only indoor installation: wall mount / ceiling mount
• Weight / Dimensions: 100g / Φ 8.5 × (H) 6.9cm

  Package contents:
• Receiver for Mini Security Kit PRO HD 720P TX-49
• 2x Power Adapter
• 1x BNC 18.3m video cable
• Optical Mouse
• SATA cable
• CD
• Dome Camera for Mini Security Kit PRO HD 720P TX-49
• 3x screws and 3x dowels
• User manual receiver and dome camera
